Brand Name: | HXCOWO |
Model Number: | ΧΧ-LXK4 |
MOQ: | 500 μέτρα. |
τιμή: | Negotiable |
Packaging Details: | Ξύλινος άξονας+Καταθήκη από χαρτόνι εξαγωγής |
PRODUCT PARAMETERS | ||||||
Tabulation | Single mode | Multi mode | Multi mode | |||
Fiber core diameter | 9±0.4 | 50±2.5 | 62.5±2.5 | |||
Cladding diameter | 125±1 | 125±1 | 125±1 | |||
Fiber optic cable loss | 0.4bd/km@1310nm | 3.5bd/km@850nm | 3.5bd/km@850nm | |||
0.3bd/km@1550nm | 1.5bd/km@1300nm | 1.5bd/km@1300nm | ||||
Outer diameter of fiber optic cable | 2.9±0.1 | |||||
Number of fiber cores | 2-288Core | |||||
Fiber optic cable weight | ~15 | |||||
Temperature performance | -20 ℃ -+70 ℃ | |||||
Bending radius | Dynamic 20x OD/Static 10x OD | |||||
Compressive strength | Long term 1000/Short term 3000 | |||||
Tensile strength | Dynamic 300/Static 600 | |||||

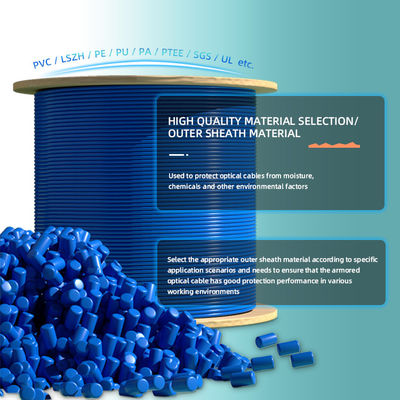

Sheath material | PVC, LSZH, PE, PU, PTEE, SGS, UL | |||||
Sheath color | Multiple colors available |
