| Ονομασία μάρκας: | HX Fiber |
| Model Number: | HX-DL2 |
| MOQ: | 1000 μέτρα |
| τιμή: | negotiable |
| Πληροφορίες συσκευασίας: | Ξύλινος άξονας+Καταθήκη από χαρτόνι εξαγωγής |
| Όροι πληρωμής: | Λ/Κ, D/A, D/P, T/T, Western Union, MoneyGram |
|
TECHNICAL PARAMETERS
|
|
|
|
|||
|
Cross-Sectional Area
(mm²)
|
Rated Breaking Force
(kn)
|
Fiber Cable Diameter
(mm)
|
Fiber Cable Weight
(kg/km)
|
|||
|
40
|
54
|
8.7
|
313
|
|||
|
50
|
61.4
|
9.6
|
348
|
|||
|
60
|
62.7
|
10.8
|
391
|
|||
|
70
|
80.8
|
11.4
|
478
|
|||
|
80
|
84.6
|
12
|
538
|
|||
|
90
|
57.3
|
12.6
|
587
|
|||
|
PRODUCT FEATURES
|
|
|
|
|||
|

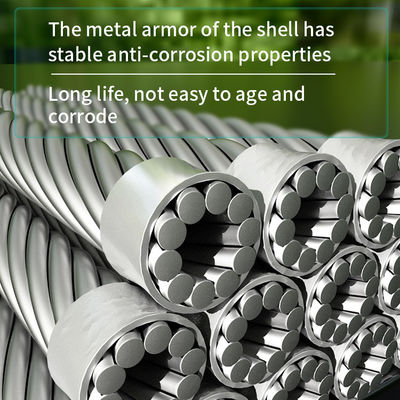

①Using advanced stainless steel pipe production technology, the pipe is filled with water-blocking compounds
|
|
|
|
|||
|
②The short-circuit current causes little mutual interference between the power grid and the communication network
|
|
|
|
|||
|
③The remaining length of the optical fiber and the cable core twisting pitch ensure that the optical cable is not stressed when operating at maximum tension
|
|
|
|
|||
|
④Compact structure, high tensile strength
|
|
|
|
|||
|
⑤The specifications are similar to commonly used ground wires, and the installation is very convenient and can directly replace the original ground wires
|
|
|
|
|||
|
|
