Υπαίθριο θωρακισμένο καλώδιο οπτικών ινών

GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties

Όλες οι κατηγορίες

Υπαίθριο θωρακισμένο καλώδιο οπτικών ινών

Πυροσβεστικές ίνες εσωτερικού και εξωτερικού χώρου

Διάταξη για την κατασκευή καλωδίων

Καλώδιο οπτικών ινών εσωτερικού χώρου

ενότητα οπτικών ινών

Μας ελάτε σε επαφή με

sales@hxfiber.com

Επαφή τώρα

GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties

Ονομασία μάρκας:	HXCOWO
Αριθμός μοντέλου:	ΧΧ-SW6
MOQ:	1000

Πληροφορίες λεπτομέρειας

Περιγραφή προϊόντων

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής:

Guangdong, Κίνα

Πιστοποίηση:

Πυρήνες ινών:

2-288 πυρήνες

Τύπος ίνας:

G652D/G657A1/G657A2

Διάμετρος (2-12 πυρήνες):

10,6 χιλ.

Διάμετρος (14-24 πυρήνες):

12 mm

Διάμετρος (26-36 πυρήνες):

12 mm

Διάμετρος (38-48 πυρήνες):

15 mm

Βάρος (2-12 πυρήνες):

124 κιλά/χλμ

Βάρος (14-24 πυρήνες):

147 κιλά/χλμ

Βάρος (26-36 πυρήνες):

150 κιλά/χλμ

Βάρος (38-48 πυρήνες):

207 κιλά/χλμ

Εφελκυστική δύναμη (Μακροπρόθεσμη):

1000 Ν

Εφελκυστική δύναμη (βραχυπρόθεσμη):

3000 N

Squash Force (Μακροπρόθεσμα):

1000 N/10mm

Δύναμη σκουός (βραχυπρόθεσμα):

3000 N/10mm

Ακτίνα κάμψης (στατική):

Ακτίνα κάμψης (δυναμική):

Επισημαίνω:

Network Data Signal Transmission GYXTW Fiber Optic Cable

Corrosion Resistant Outdoor Armored Fiber Optic Cable

Excellent Mechanical Properties Armoured Fiber Optical Cable

Περιγραφή προϊόντων

HXCOWO 12-24 Core GYXTW Outdoor Armoured Fiber Optical Cable

Technical Parameters

Fiber Cores Number	Diameter (mm)	Weight (kg/km)
2-12	10.6	124
14-24	12	147
26-36	12	150
38-48	15	207

Allowable Tensile Force (N)	Allow Squash Force (N/10mm)	Bending Radius (mm)
1000/3000	1000/3000	10D/20D

Product Features

Excellent mechanical properties and temperature characteristics
Loose tube material with good hydrolysis resistance and high strength
Special oil paste filling provides critical fiber protection
Good compression resistance and flexibility
Double-sided coated steel strip (PSP) enhances moisture resistance
Two parallel steel wires ensure superior tensile strength
Compact diameter and lightweight for easy installation
Extended delivery lengths available

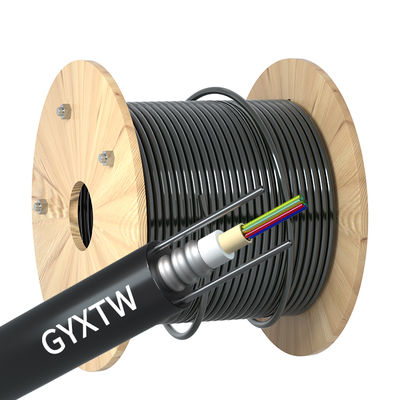

GYXTW Outdoor Bundled Tube Fiber Cable

Grade A fiber core with high-quality material selection and quality assurance.

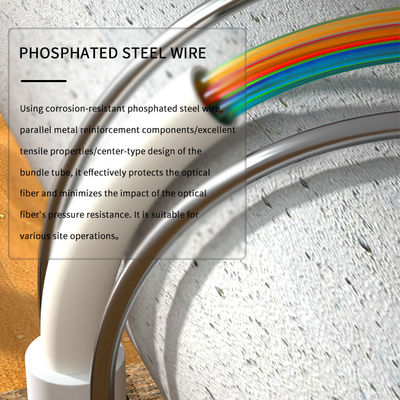

Phosphated Steel Wire Reinforcement

Corrosion-resistant phosphated steel wire with parallel metal reinforcement components provides excellent tensile properties. The center-type bundle tube design effectively protects the optical fiber while minimizing pressure impact, making it suitable for various installation environments.

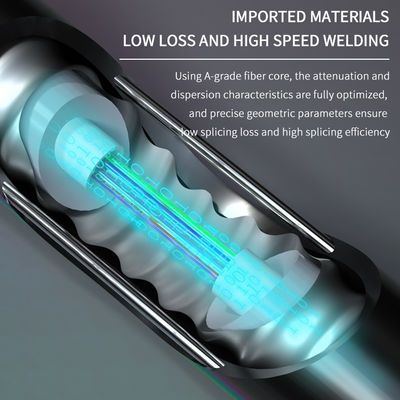

Imported Materials for Optimal Performance

Low loss and high speed welding: Using A-grade fiber core with optimized attenuation and dispersion characteristics. Precise geometric parameters ensure low splicing loss and high splicing efficiency.

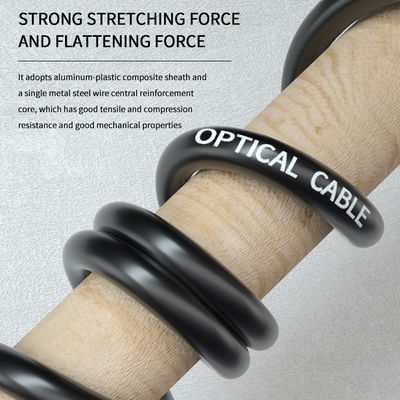

Superior Mechanical Properties

Features aluminum-plastic composite sheath and single metal steel wire central reinforcement core for excellent tensile and compression resistance with outstanding mechanical performance.

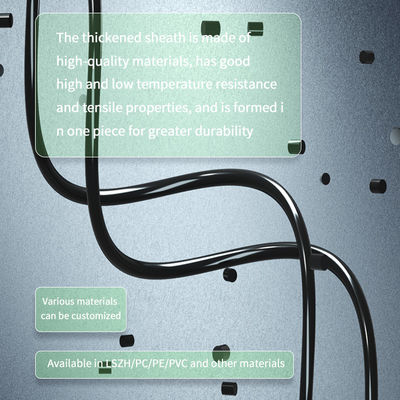

Customizable Materials

Thickened sheath made of high-quality materials provides excellent temperature resistance and tensile properties. Available in various customizable materials including LSZH, PC, PE, and PVC.

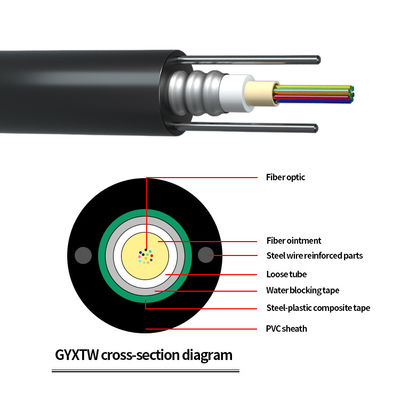

GYXTW Cable Structure

Single-mode or multi-mode optical fibers are inserted into high-modulus poly loose tubes filled with waterproof compound. The tubes are twisted around a central strengthening core with water-blocking fillers in the gaps. Features small diameter and lightweight design suitable for pipeline, overhead, and direct buried installations with excellent mechanical and temperature characteristics.

Custom Design Solutions

We accept custom designs to bring your specifications to reality.

Contact Us for Customization GYXTW Outdoor Armored Fiber Optic Cable with Network Data Signal Transmission Corrosion Resistant and Excellent Mechanical Properties 8

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new projects of our customers, trial orders are available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing etc.).

5. How long will it take you to deliver?

Our usual delivery takes 15 to 20 days.

6. Can we trust you?

We have 18 years of manufacturing history with products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
