144 Core G652D Armored Fiber Optic Cable with Corrosion Resistant and Low Loss for Telecom Communication

Ονομασία μάρκας:	HXCOWO
Αριθμός μοντέλου:	ΧΧ-SW6
MOQ:	1000
τιμή:	$0.14-0.30

Πληροφορίες λεπτομέρειας

Περιγραφή προϊόντων

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής:

Guangdong, Κίνα

Πιστοποίηση:

Τύπος ίνας:

G652D/G657A1/G657A2

Αρίθμηση ινών:

2-288 πυρήνες

Διάμετρος (2-12 πυρήνες):

10,6 χιλ.

Διάμετρος (14-24 πυρήνες):

12 mm

Διάμετρος (26-36 πυρήνες):

12 mm

Διάμετρος (38-48 πυρήνες):

15 mm

Βάρος (2-12 πυρήνες):

124 κιλά/χλμ

Βάρος (14-24 πυρήνες):

147 κιλά/χλμ

Βάρος (26-36 πυρήνες):

150 κιλά/χλμ

Βάρος (38-48 πυρήνες):

207 κιλά/χλμ

Εφελκυστική δύναμη (Μακροπρόθεσμη):

1000 Ν

Εφελκυστική δύναμη (βραχυπρόθεσμη):

3000 N

Squash Force (Μακροπρόθεσμα):

1000 N/10mm

Δύναμη σκουός (βραχυπρόθεσμα):

3000 N/10mm

Ακτίνα κάμψης (στατική):

Ακτίνα κάμψης (δυναμική):

Επισημαίνω:

144 Core Armored Fiber Optic Cable

Corrosion Resistant GYXTW Fiber Cable

Low Loss Outdoor Fiber Optic Cable

Περιγραφή προϊόντων

HXCOWO Single Mode G652D GYXTW 4-144 Core Armoured Fiber Optic Cable

TECHNICAL PARAMETERS

Fiber Cores Number	Diameter (mm)	Weight (kg/km)
2-12	10.6	124
14-24	12	147
26-36	12	150
38-48	15	207

Allowable Tensile Force Long Term/Short Term (N)	Allow Squash Force Long Term/Short Term (N/10mm)	Bending Radius Static/Dynamic (mm)
1000/3000	1000/3000	10D/20D

PRODUCT FEATURES

Excellent mechanical properties and temperature characteristics
Loose tube material with good hydrolysis resistance and high strength
Special oil paste filling provides critical protection for optical fibers
Good compression resistance and flexibility
Double-sided coated steel strip (PSP) improves moisture resistance
Two parallel steel wires ensure tensile strength
Small diameter, lightweight, easy to install
Long delivery length available

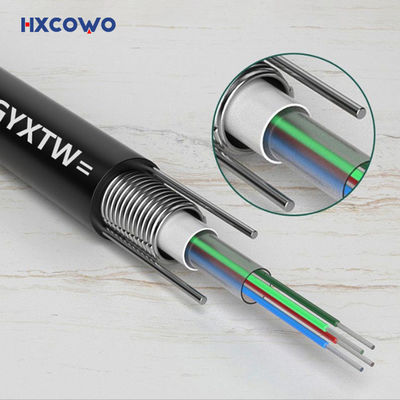

OUTDOOR BUNDLED TUBE FIBER CABLE GYXTW

Grade A fiber core / High-quality material selection / Quality assurance

PHOSPHATED STEEL WIRE

Using corrosion-resistant phosphated steel wire, parallel metal reinforcement components with excellent tensile properties. Center-type bundle tube design effectively protects optical fibers and minimizes pressure impact. Suitable for various site operations.

IMPORTED MATERIALS - LOW LOSS AND HIGH SPEED WELDING

Using A-grade fiber core with optimized attenuation and dispersion characteristics. Precise geometric parameters ensure low splicing loss and high splicing efficiency.

STRONG STRETCHING FORCE AND FLATTENING FORCE

Features aluminum-plastic composite sheath and single metal steel wire central reinforcement core for excellent tensile and compression resistance with good mechanical properties.

CUSTOM MATERIAL OPTIONS

Thickened sheath made of high-quality materials with excellent temperature resistance and tensile properties. Available in LSZH/PC/PE/PVC and other materials. Various materials can be customized.

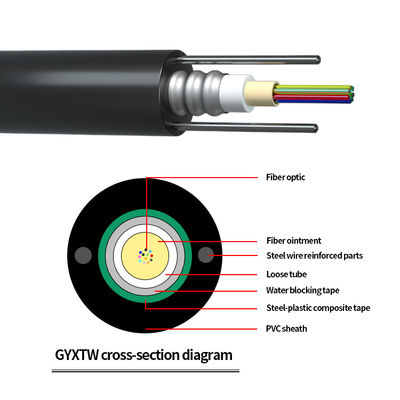

GYXTW CABLE STRUCTURE

Single-mode or multi-mode optical fiber inserted into high-modulus poly loose tube filled with waterproof compound. Tubes twisted around central strengthening core with water-blocking fillers. Features small diameter, lightweight design suitable for pipeline, overhead and direct buried laying with excellent mechanical properties and temperature characteristics.

CUSTOMIZATION AVAILABLE

Accept customization - Put Your Good Idea into Reality (Click "Contact Us") 144 Core G652D Armored Fiber Optic Cable with Corrosion Resistant and Low Loss for Telecom Communication 8

FREQUENTLY ASKED QUESTIONS

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing etc.).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
